Aplicația Adtech Robots-AR5215AR6520

Model:

AR5215

Numărul de robot:

1

Echipament periferic:

AVS3200

Number of   peripheral equipment:

1

Eficiență bate:

Eficiența întregii linii12s

Precizia echipamentului mașinii:

±0.025mm

Economisiți forța de muncă:

2 persoane

Tip de client:

Integrators   face enterprise terminals

Prezentarea proiectului:

1.          1. Basic process: take the LOGO at the fixed feeding position, and   tear off the adhesive at the adhesive tearing station. After the adhesive is   peeled, the LOGO is not flat on the nozzle (it will affect the accuracy of   flip-chip camera photography), and then unload the material on the secondary   platform. Use a rigid suction clamp to take pictures with the flip-chip   static camera, use the coordinates of the points obtained from the pictures   to build a dynamic tool, go to the discharge point, use the dynamic camera   mounted on the J4 axis to take pictures and position the fitting position of   the notebook cover, use Flip the camera built tool to locate the point to   fit.

Avantajele echipamentului:

1. Save   labor and improve production efficiency.

2. The pass   rate of incoming materials (laptop cover) can have a visual inspection   effect, which is more accurate than manual inspection.

3. The   stability and precision are higher than that of manual fitting.

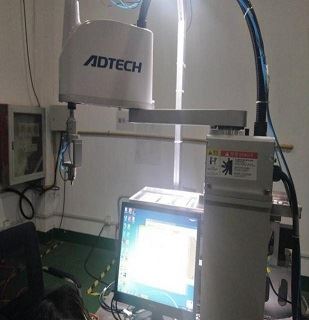

Equipment   production pictures (with live video)

Model:

AR4215,AR5215,AR6520,AR81030

Numărul de robot:

4

Echipament periferic::

Gheare jig

Number of   peripheral equipment:

4

Eficiență bate:

50 de ori/min

Precizia echipamentului mașinii:

±0.05mm

Economisiți forța de muncă:

2 persoane

Tip de client:

Agents face   equipment manufacturers

Prezentarea proiectului:

The assembly line transports the oral liquid in sequence, and the oral   liquid reaches the pick-up level sensor to give the SCARA robot a grasping   signal. The robot runs to the pick-up level for grasping, and then moves to   the packaging position of the indexing plate and places it in the packaging   box.

Avantajele echipamentului:

 1. Compare   the introduction and flexibility of mechanical design and assembly of   Cartesian coordinate equipment.

2.The equipment has high precision, and the   efficiency of medicine boxing is increased by 20 percent .

Equipment   production pictures (with live video)

Model:

AR6520

Numărul de robot:

1

Echipament periferic:

AVS3200 Vision   system

Number of   peripheral equipment:

1

Eficiență bate:

60   pieces/minute

Precizia echipamentului mașinii:

±0.025mm

Economisiți forța de muncă:

1 人

Tip de client:

Integratori

Prezentarea proiectului:

1.          The manipulator acts as the server, the vibrating plate vibrates, and   then the camera takes pictures to identify which ones can be grasped, and   then sends the position to the robot. After the robot receives the data, it   goes to the target position to pick up the material, and puts it in a fixed   position. Send a signal to the host computer, and send a completion signal to   the host computer after all the reclaiming points are taken.

Avantajele echipamentului:

1. The takt   time of equipment efficiency is increased by 10 percent .

2. Save 1   person at the workstation, recover the cost in 2 years, and use the equipment   for more than 5 years.

Equipment   production pictures (with live video)
